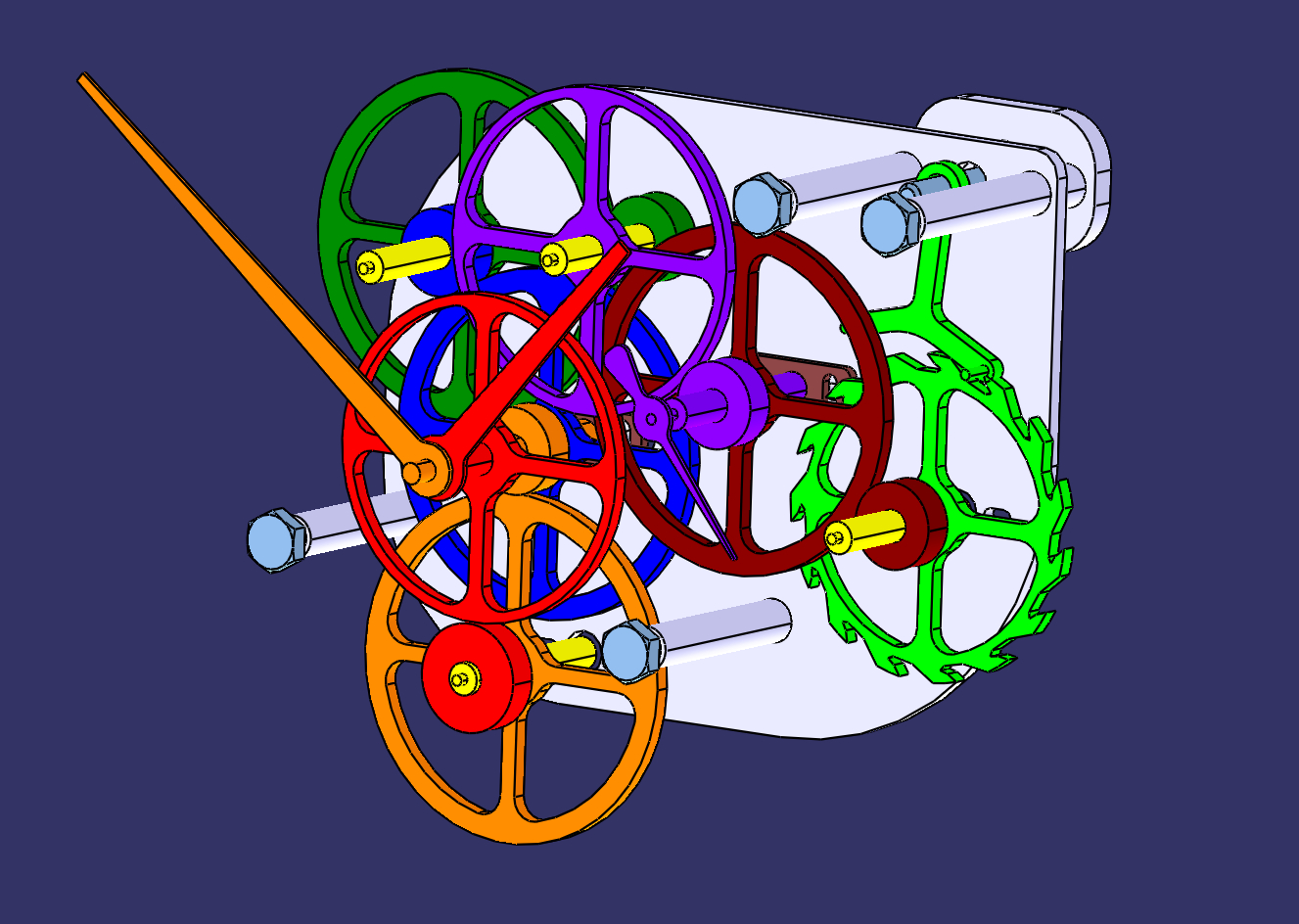

CAD model of the assembled mechanism (Catia V5)
A simple clock, aluminum frame and wooden wheels (laser cut).
Vernissage des roues
Vernissage des roues
Vernissage des roues
Vernissage des roues

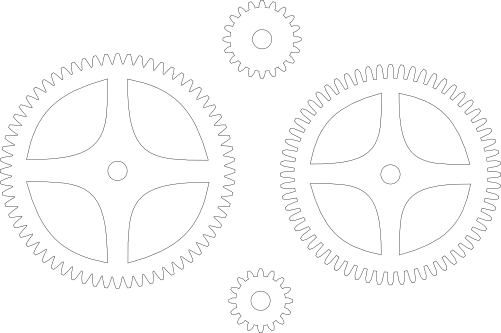

View of the wooden gears
Tries with a prototype escape wheel.
CAD model of the assembled mechanism
CAD model of the assembled mechanism (Catia V5)
CAD model of the assembled mechanism (Catia V5)
First version with escape wheel on the back
Very first version
Clock
